3 Phase 11kw Portable Home Ev Charger With CE Certification
Product Description
Meet the EVA11B—a powerful 11kW portable EV charger engineered for high-performance electric vehicles and 3 phase power systems.
Operating at 400V AC with a maximum output of 11kW , this charger delivers faster charging speeds ideal for EVs with larger batteries. It complies with IEC 62752:2016/COR1:2019 and carries CE certification, ensuring top-tier safety and compatibility across European markets.
The EVA11B integrates full protection mechanisms including over/under voltage, overload, short circuit, leakage, over-temperature, and lightning protection, plus a built-in Type B RCD for maximum safety. Despite its high power, it remains portable at just 3.2kg and features a compact, rugged design with an IP67 rating, performing reliably in temperatures from -30°C to 60°C. With an intuitive OLED screen, adjustable current, delay charging, and a 5-meter cable, the EVA11B brings professional-grade charging to your fingertips.
Key Advantage
- Adjustable current
- Delay charging setting
- LED Light and Touch Key
- Built-in RCD type B
Specificaiton
| Product Model EVA11B |
| Input/Output voltage |
AC 400V |
| Input frequency |
50/60Hz |
| Max.output power |
3-Phase up to 11kW(@400V 16A) |
| Max.output current |
16A for 3- Phase |
| Standard |
IEC 62752:2016/COR1:2019 |
| Protection |
|
| Certificate |
CE |
| Over voltage protection |
Yes |
| Under voltage protection |
Yes |
| Over load protection |
Yes |
| Short circuit protection |
Yes |
| Leakage protection |
Yes |
| Over - temp protection |
Yes |
| Lightning protection |
Yes |
| Function and Accessory |
|
| LED indicators |
Yes |
| OLED screen |
Yes |
| RCD |
Type B |
| Current adjustment |
Yes |
| Delay charging adjustment |
Yes |
| Ethernet/WIFI/4G/Bluetooth |
No |
| Working environment |
|
| Protection degree |
IP 67 |
| Operation temperature |
-30℃ - 60℃ |
| Relative humidity |
≤95%RH |
| Operating elevation limit |
≤2000m |
| Cooling |
Natural air cooling |
| Standby power consumption |
<0.5W |
| Mechanical parameters |
|
| Charging cable |
5m (Standard configuration) |
| Control box |
H*W*D = 200mm*90mm*52mm |
| Weight |
≤3.2kg |
| Colour&Material |
Black;Tempered Glass,PC |
Features
LED Display:
- Charging Temperature
- Charging Current
- Charging Voltage
- Energy Charged in KW/h
- Charged time.
- Set Current
- Charging speed in KW
LED Indicators
Control Box Function:
- Leakage protection
- Over-voltage or Low-voltage protection
- Over-load protection
- Lightning protection
- Over-heat protection
- Change current: 8A 10A 13A 16A

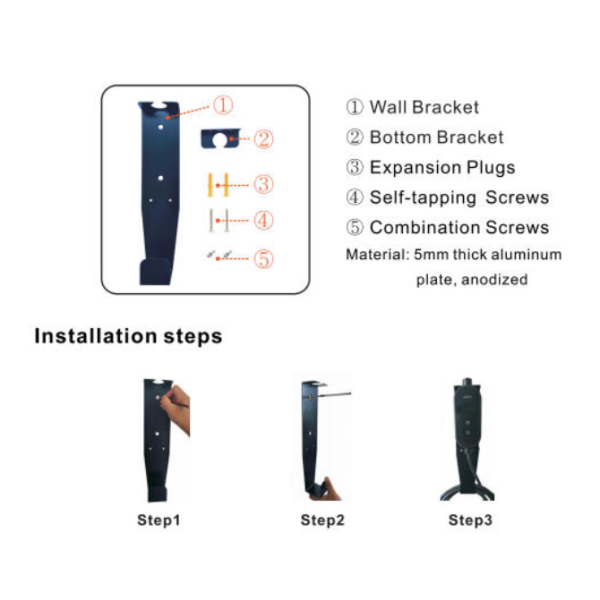

How to install
- Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.
- Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping screws.
- Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

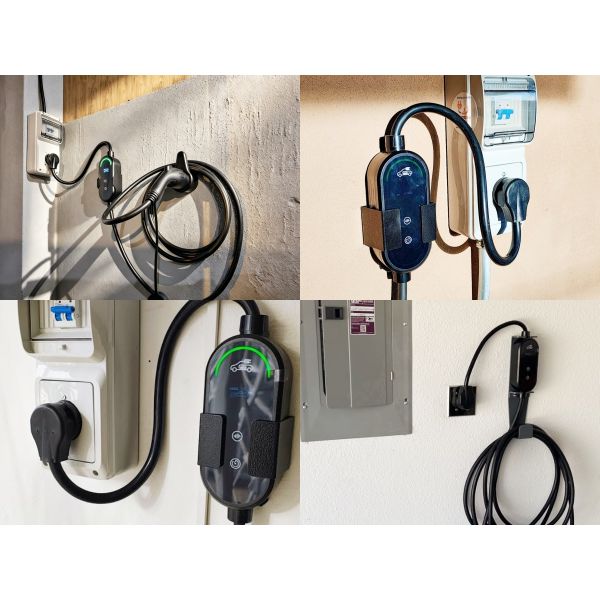

Installation cases
